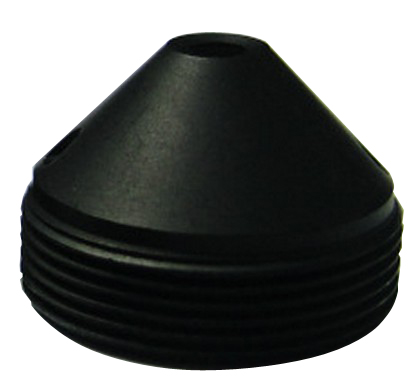

1/3" 2.8mm F2.4 Megapixel M12x0.5 Mount 125degree Sharp Cone Pinhole Lens for covert cameras

Name: 13quot 28mm F24 Megapixel M12x05 Mount 125degree Sharp Cone Pinhole Lens for covert cameras
Brand: CCOM LENS
Price: 1 USD

Quality 1/3" 2.8mm F2.4 Megapixel M12x0.5 Mount 125degree Sharp Cone Pinhole Lens for covert cameras wholesale

Place of Origin : China

Model Number : 13028PMP-M12 / 13028PMP-M12-E

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

MOQ : 100pcs

CCTV Lens : M12 Mount Pinhole Lens

Focal Length : 2.8mm Pinhole Lens

Resolution : Megapixel

Lens Constructure : 5G/5G+IR

Contact Now

1/3" 2.8mm F2.4 Megapixel S-Mount M12x0.5 mount 125degree Wide-angle Sharp Cone Pinhole Lens for covert cameras

Model 13028PMP-M12
SENSOR FORMAT 1/3” CCD/CMOS
FOCAL LENGTH 2.8mm ±5%
RESOLUTION 1.3MP
F.O.V.(D*H*V) 125°*82°*62°
APERTURE F2.4 ±5%
IRIS Fixed
M.O.D. 0.3m
MOUNT M12XP0.5
B.F.L. 3.6mm ±5% (in air)

F.B.L. 3.1mm ±5%
T.T.L. 11.1mm ±5%
LENS CONSTRUCTURE 5G

DIMENSION Φ12x8mm

Model 13028PMP-M12-E (economic version)
SENSOR FORMAT 1/3” CCD/CMOS
FOCAL LENGTH 2.8mm ±5%
RESOLUTION 1.3MP
F.O.V.(D) 121°
APERTURE F2.4 ±5%
IRIS Fixed
M.O.D. 0.3m
MOUNT M12XP0.5 (M9x0.5 mount optional)
B.F.L. 3.0mm ±5% (in air)

F.B.L. 2.8mm ±5%
T.T.L. 11.6mm ±5%
LENS CONSTRUCTURE 4G

DIMENSION Φ12x9mm

Tips:

- M12/M9 mount option
- IR-Cut filter available
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
